Magnetic Autocontrol Access Solar Right-Hand Barrier Gate with 10' MicroBoom Arm

Magnetic AccessSKU: MAG-ACCESS-RE01000

Color: Orange
Price:
Sale price$4,289.99
  • Estimated delivery 1 week.
  • Final sale. No returns or exchanges.

Estimate shipping

Magnetic Autocontrol Access Solar Right-Hand Barrier Gate with 10' MicroBoom Arm

For access control

The Access-RE line is specifically designed for facilities that already have a 24V DC power source. The solar power option gives you the ability to use your MHTM MicroDrive in remote locations where it is cost-prohibitive to run power. The easily integrated option fits completely inside the gate housing and allows operation of up to 500 cycles per day, depending on the conditions. The solar panel options also include either a 100 or 200-watt solar panel, two 27Ah batteries, and a mounting bracket that allows mounting on a wall or up to a 4” round post.

The Access series barriers from Magnetic are optimized solutions for access control at car parks, company grounds, residential buildings, port facilities, and other secured areas with lane widths up to 20 ft. At the heart of the Access series is the innovative MHTM drive that is distinguished by its energy efficiency, lack of maintenance, and long service life – the Access series is designed for 10 million opening and closing cycles.

Note

Please allow an extended lead time due to manufacturing and shipping for this product. For questions or additional information, please contact customer support at (800) 730-8382.

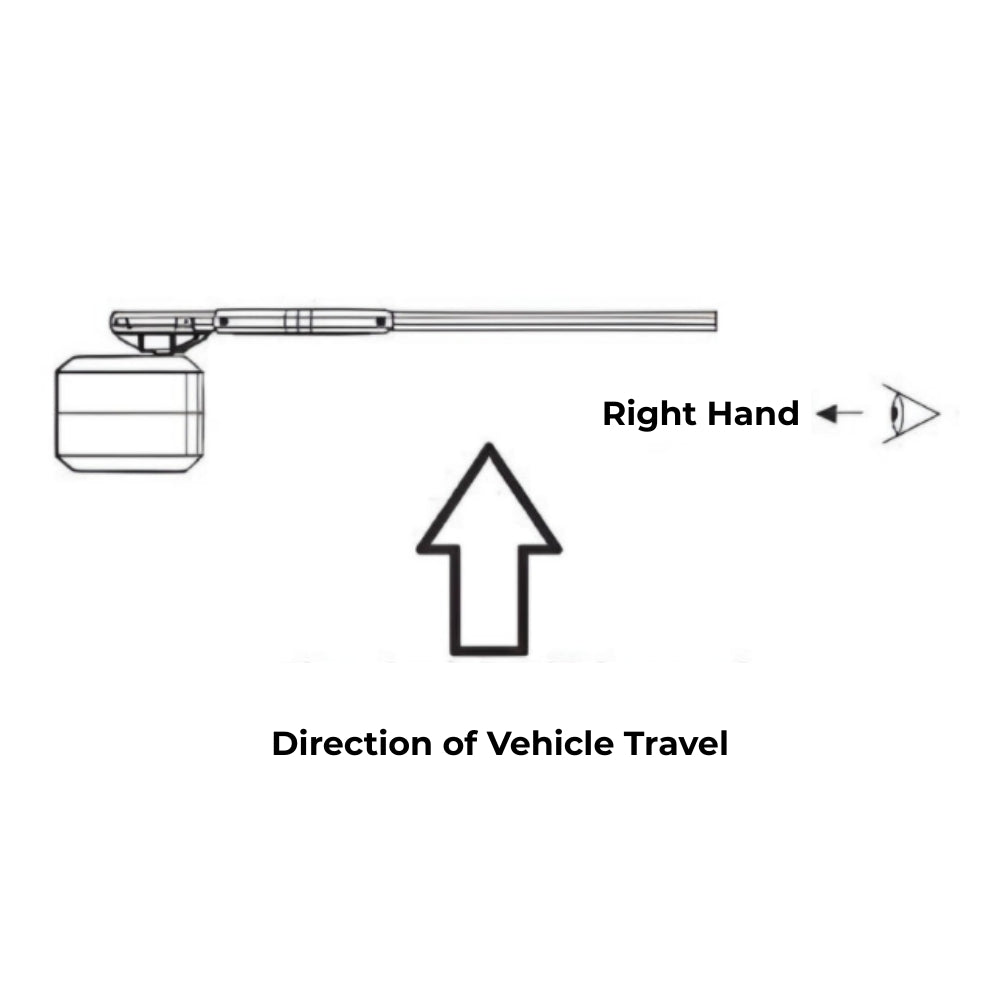

This configuration is for the right-hand version of the product.
Magnetic Autocontrol 24V Tall Access with 10 Ft. MicroBoom

If you need the left-hand version, click here.

**Barrier arms over 15 ft. must be supported with pendulum support or with a support post.

This product is a special order only, and it is not eligible for returns or refunds.

Features
  • Autonomous energy supply via solar panel
  • Very low operating costs thanks to efficient and durable MHTM drive.
  • Ease-of-use and optimum accessibility thanks to a well-thought-out design.
  • High level of functionality for numerous applications.
  • Solar power option allows for up to 500 cycles per day in remote locations, where it is cost-prohibitive to run power.
  • High security with optional boom skirts
Manufacturer's Warranty Period
  • 2 years or 2 million cycles (whichever occurs first)
Technical Specifications
  • Barrier width: Max. 12 ft
  • Opening Width: 10 ft
  • Opening/closing time: 2.2 s
  • Power consumption: Max. 25 W
  • Drive technology: MHTM™
  • Voltage: 21-26V DC
  • Duty cycle: 100 %

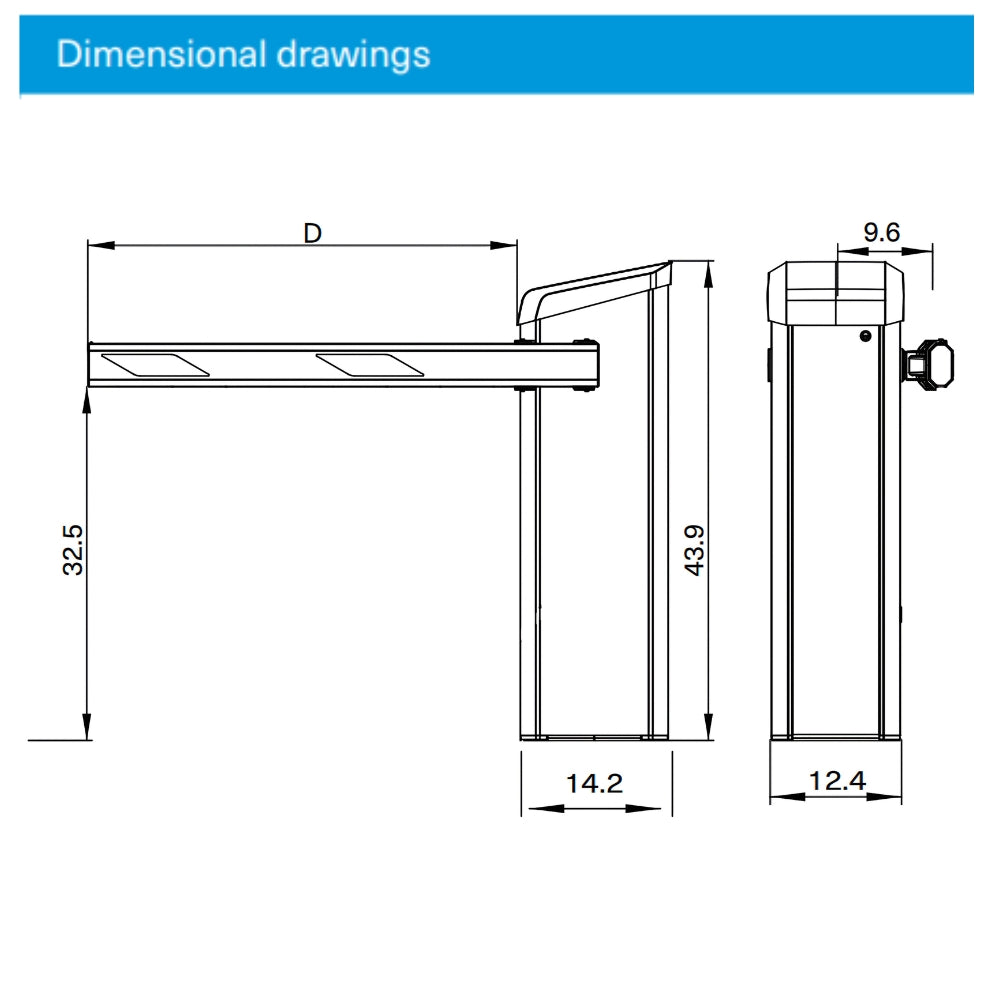

  • Housing dimensions: (LxWxH) 12.4 x 14.2 x 36.0 in
  • Enclosure rating: IP 54
  • Temperature range: −22 to +131°F
  • Weight without barrier arm: 96 lb
  • Standard colors: Orange (RAL 2000), White (9010)
  • Barrier arm type: MicroBoom
  • Control system: MGC
  • Integrated 2-channel detector for induction loops: Standard
  • Variable I/O assignment: n/a
  • No. of digital inputs: 8
  • No. of relays/digital outputs: 6/4
  • Selectable closing speed: Standard
  • Selectable opening speed: n/a
