Magnetic Autocontrol Access Pro-L Right-Hand Barrier Gate with 12' VarioBoom Arm
For access control
The Access series barriers from Magnetic are optimized solutions for access control at car parks, company grounds, residential buildings, port facilities, and other secured areas with lane widths up to 20 ft.
At the heart of the Access series is the innovative MHTM™ drive that is distinguished by its energy efficiency, lack of maintenance, and long service life – the Access series is designed for 10 million opening and closing cycles. The Access Pro-L is characterized by a high level of functionality and offers expansion potential with plug-in modules and exclusive accessories. Magnetic quality lies not just in the detail, but is also easily recognizable thanks to its stylish design. The Access series has already been awarded two design prizes.
Note
Please allow an extended lead time due to manufacturing and shipping for this product. For questions or additional information, please get in touch with customer support at (800) 730-8382.

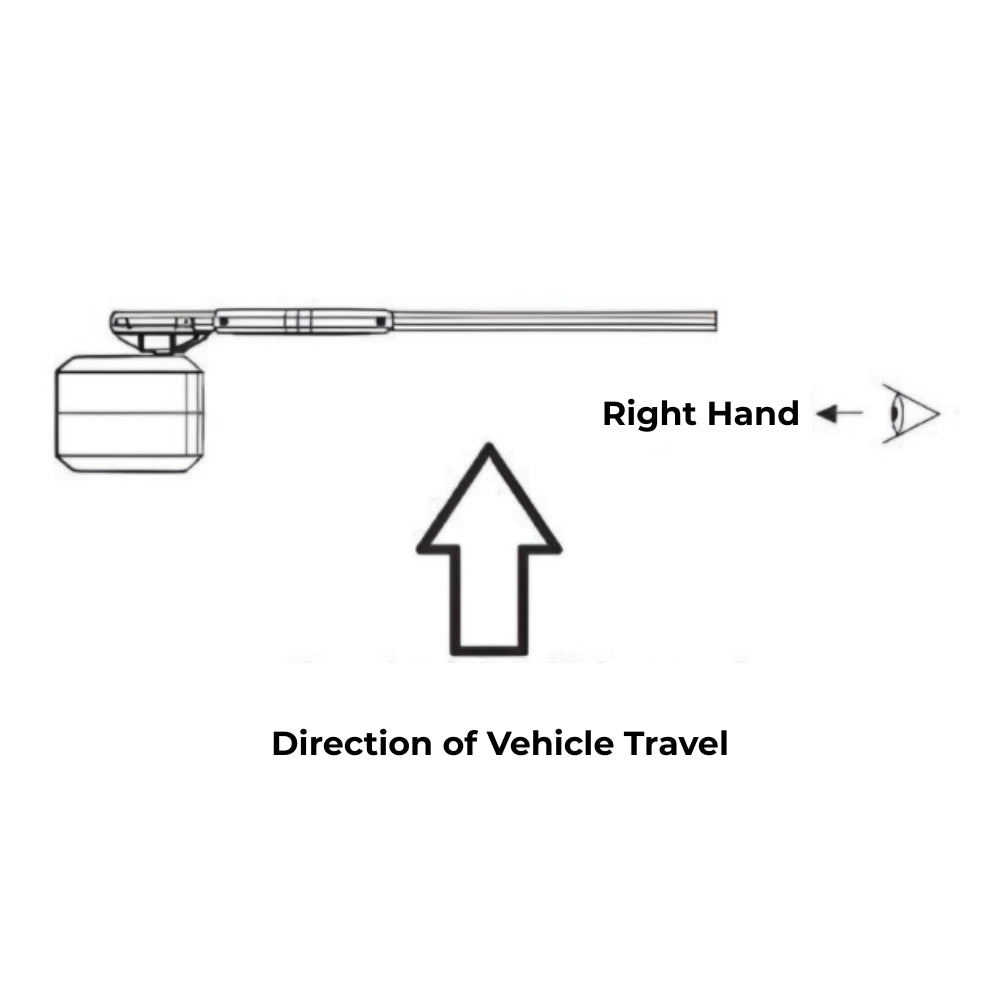

If you need the left-hand version, click here.
This product is a special order only, and it is not eligible for returns or refunds.
*Barrier arms over 15' must be supported with pendulum support or with a support post.
*Barrier skirts and barrier arm lights/LEDs cannot be combined.
Low operating costs
With arm lengths up to 20 ft, the Access Pro series is perfectly suited for a wide variety of applications. Thanks to their high energy efficiency, extremely long service lives, and simple maintenance, barriers from Magnetic are particularly cost-effective – an investment that will certainly pay off!
Innovative drive technology
The MHTM™ drive unit is maintenance-free, energy-efficient, and quiet. The high torque guarantees the best possible operation even under extreme weather conditions.
Legal security
Magnetic vehicular lift barriers have always been UL 325 compliant. UL 325 ensures that our product guards against entrapment, fire, and electrical shock.
Easy access to components
Two simple steps: control systems and the drive unit are easily reached by removing the top cover and front plate. This increases user-friendliness and accelerates commissioning and service.
Features
- High level of functionality for numerous applications
- Very low operating costs thanks to efficient and durable MHTM™ drive
- Ease-of-use and optimum accessibility thanks to a well-thought-out design
- Acclaimed design: German Design Award 2014 and Red Dot Design Award 2012
- Designed for 10 million opening and closing cycles
Manufacturer's Warranty Period
- 2 years or 2 million cycles (whichever occurs first)
Technical Specifications
- Barrier width: 12 ft.
- Opening/closing time: 4.0 s
- Power consumption: Max. 25 W
- Drive technology: MHTM™
- Voltage: 85–264 VAC, 50/60 Hz
- Duty cycle: 100 %
- Housing dimensions (LxWxH): 12.4 x 14.2 x 36.0 in
- Enclosure rating: IP 54
- Temperature range: −22 to +131°F
- Weight without barrier arm: 88.2 lb
- Standard colors: Orange (RAL 2000), Light Grey (90060, Dark Grey (9007), White (9010)
- Barrier arm type: VarioBoom
- Control system: MGC Pro
- Integrated 2-channel detector for induction loops: Standard
- Modular expansion of control system: Freely expandable
- Variable I/O assignment: Standard
- No. of digital inputs: 8
- No. of relays/digital outputs: 6/4
- Selectable closing speed: Standard
- Selectable opening speed: Standard
