Nice TITANKIT 12L1 Solar Swing Gate Operator Kit | HYS-O-T12L1-SLR-KIT

Nice TITANKIT 12L1 Solar Swing Gate Operator Kit | HYS-O-T12L1-SLR-KIT

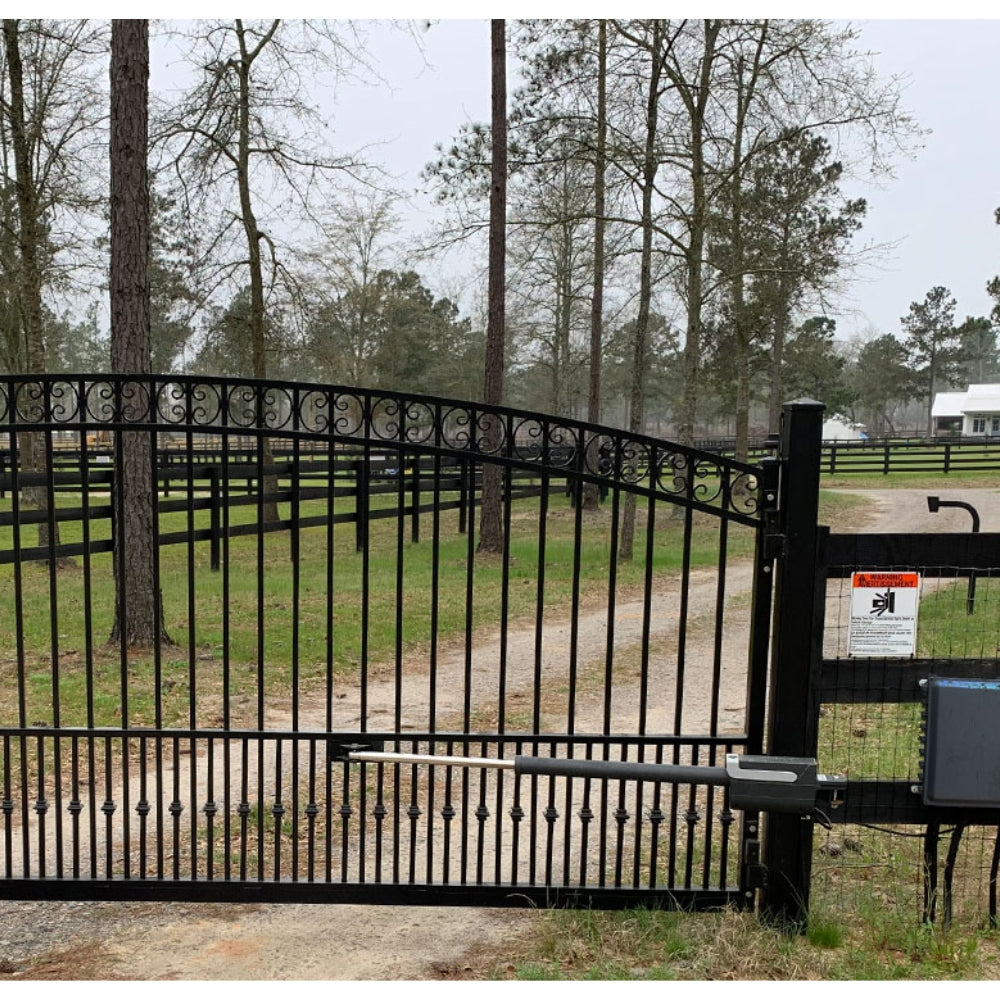

The Nice TITAN12L1 Solar Powered Swing Gate Operator Full Package (1050 Board) with Solar Panel includes everything you will need for the complete installation and operation of a top-notch, environmentally friendly opener system. With a two-button transmitter, keypad, and exit wand system, controlling traffic into and out of any area is simple and straightforward. Its 10 Watt Solar Panel and regulator allow you to harness the power of the sun to operate your gate. Add in a photo eye, actuator, and antenna. This system is both reliable and easy to use. It can operate gates as long as 8' per leaf and weighing up to 1,000 lbs, as well as gates of up to 20' weighing as much as 600 lbs.

This operator package is engineered for quiet operation, smooth closing, and all-weather performance. It features adjustable current sensitivity for automatic safety reverse, a 14-16 second open/close time in each direction, and an automatic adjustable close timer.

Elegant, modular design meets quiet operation. Quiet, powerful, and field-repairable with multiple controller and power options.

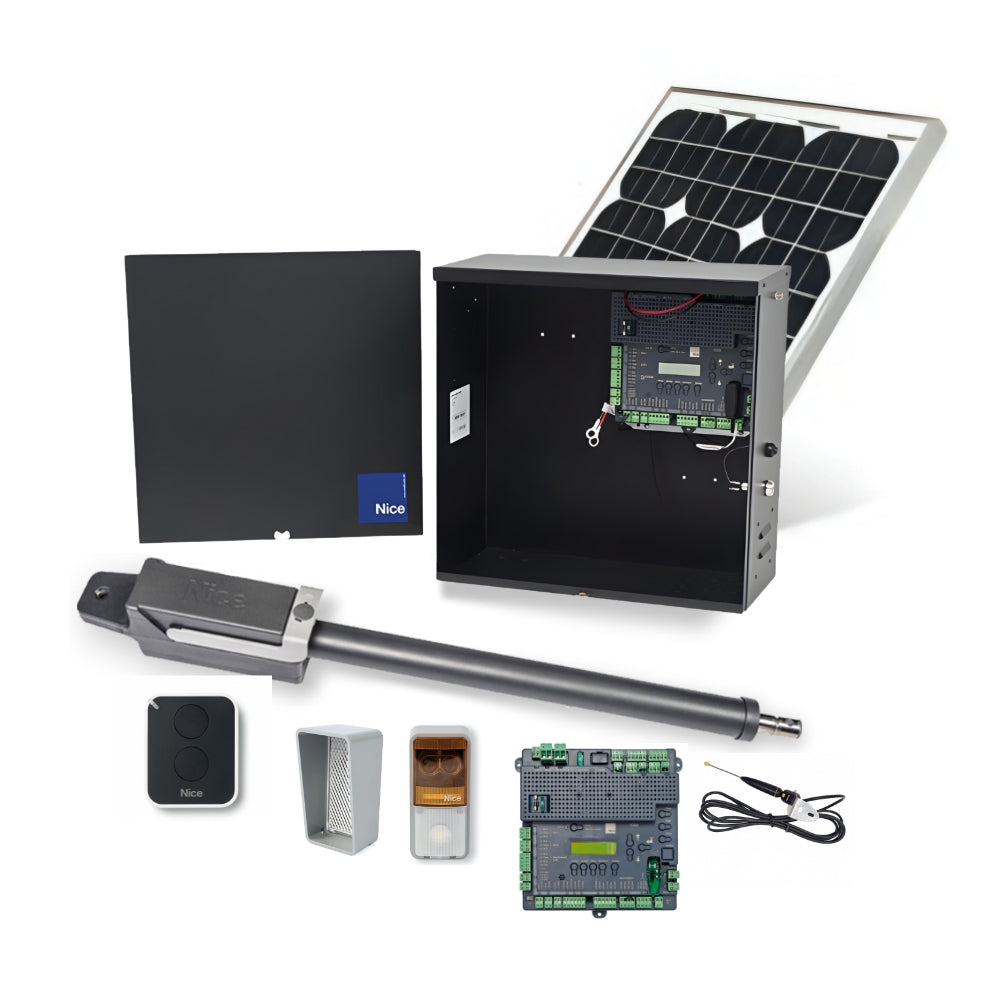

Includes

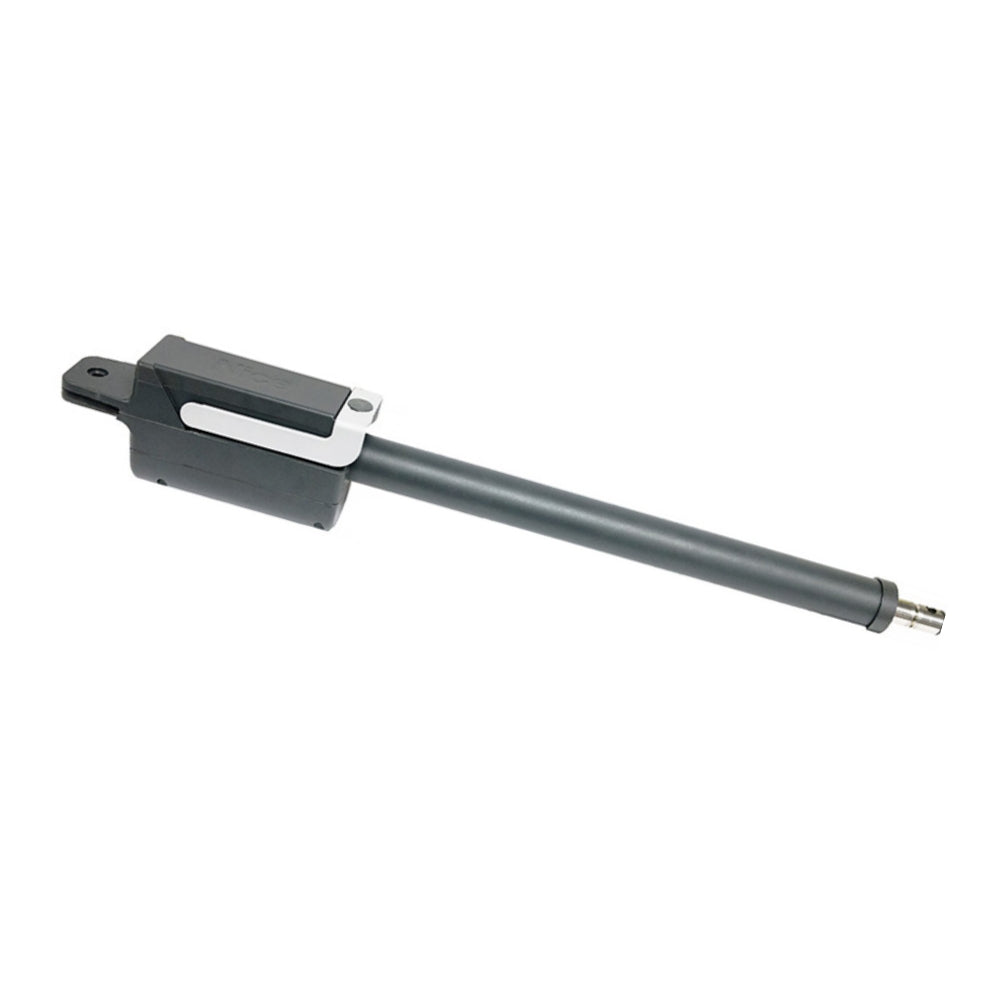

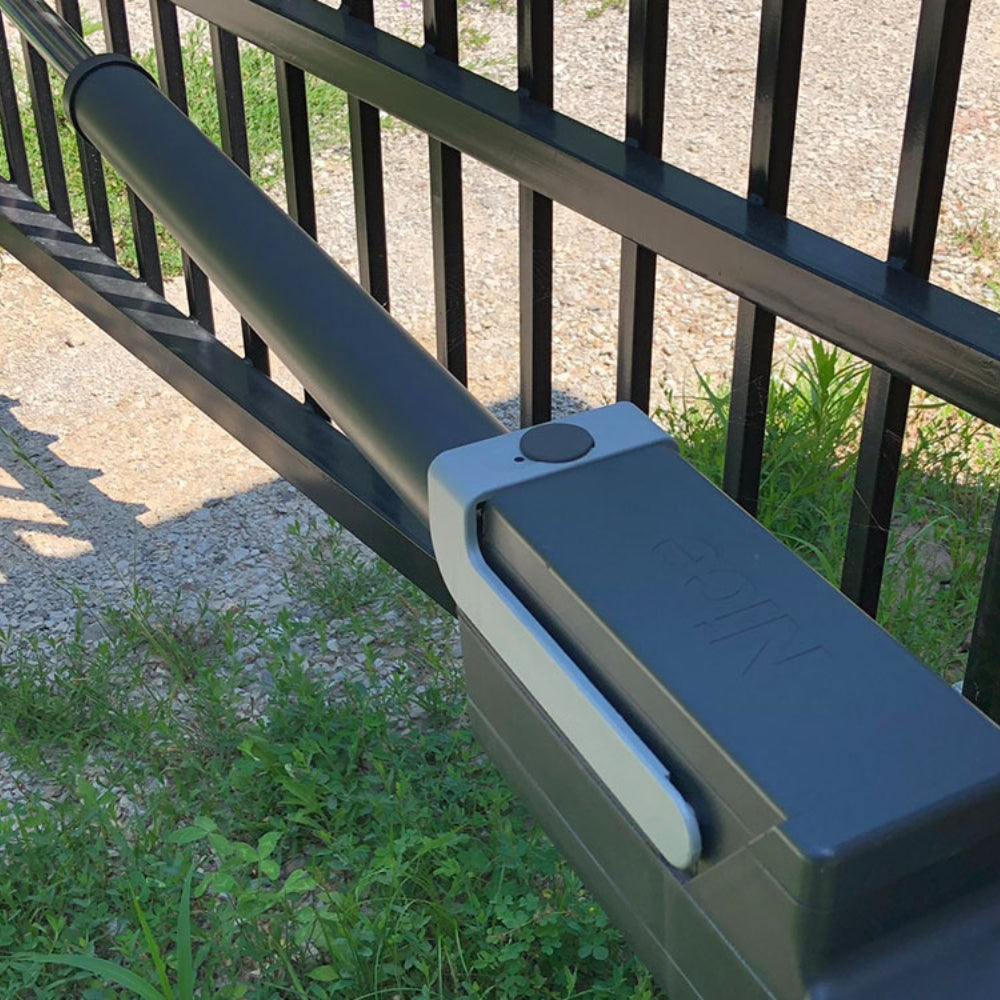

• 912L-1 arm

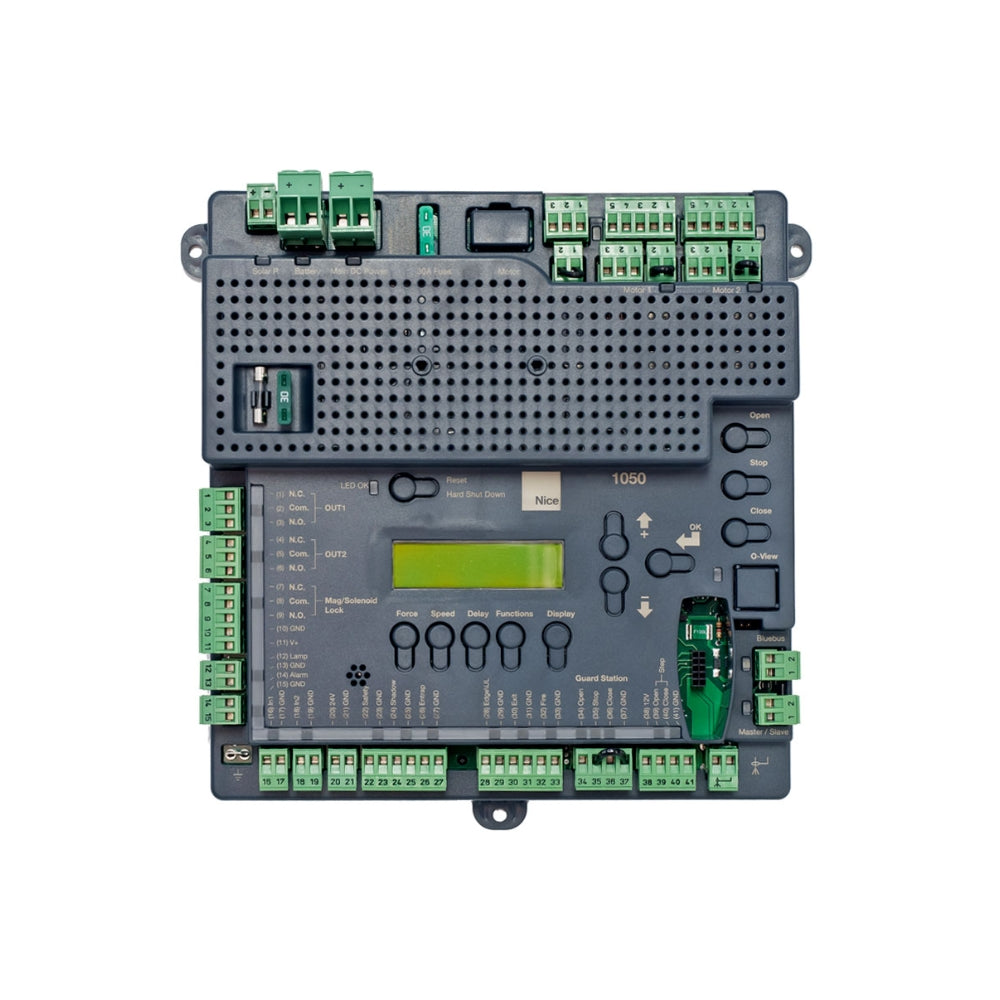

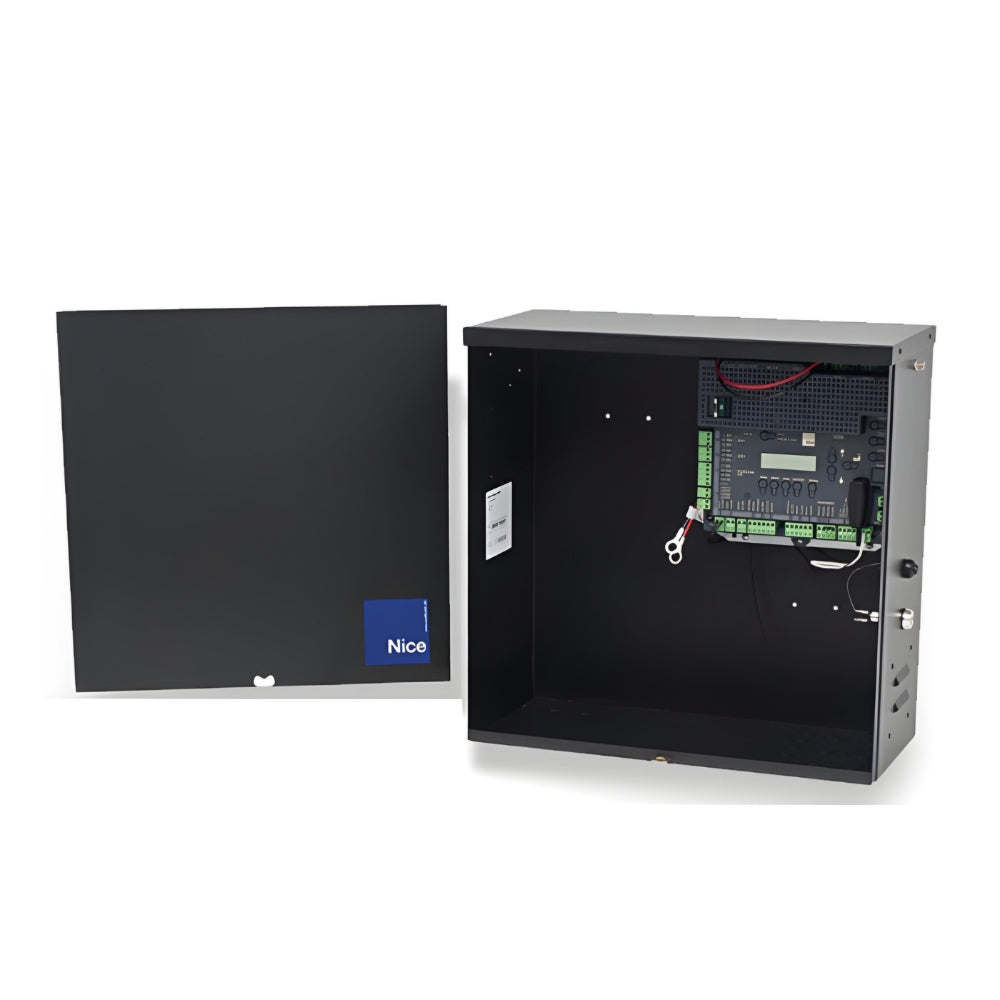

• CBOX with 1050 controller
• solar panel
• OXI receiver

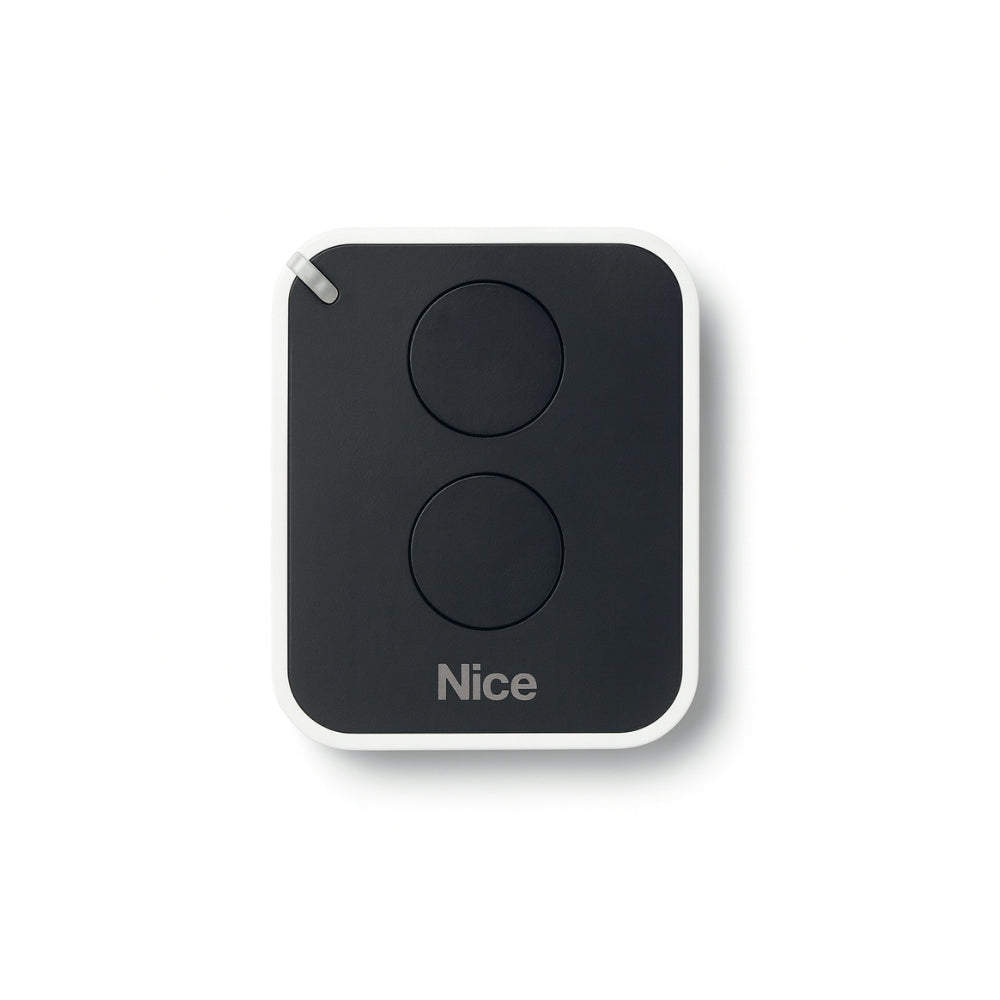

• ON2E transmitter

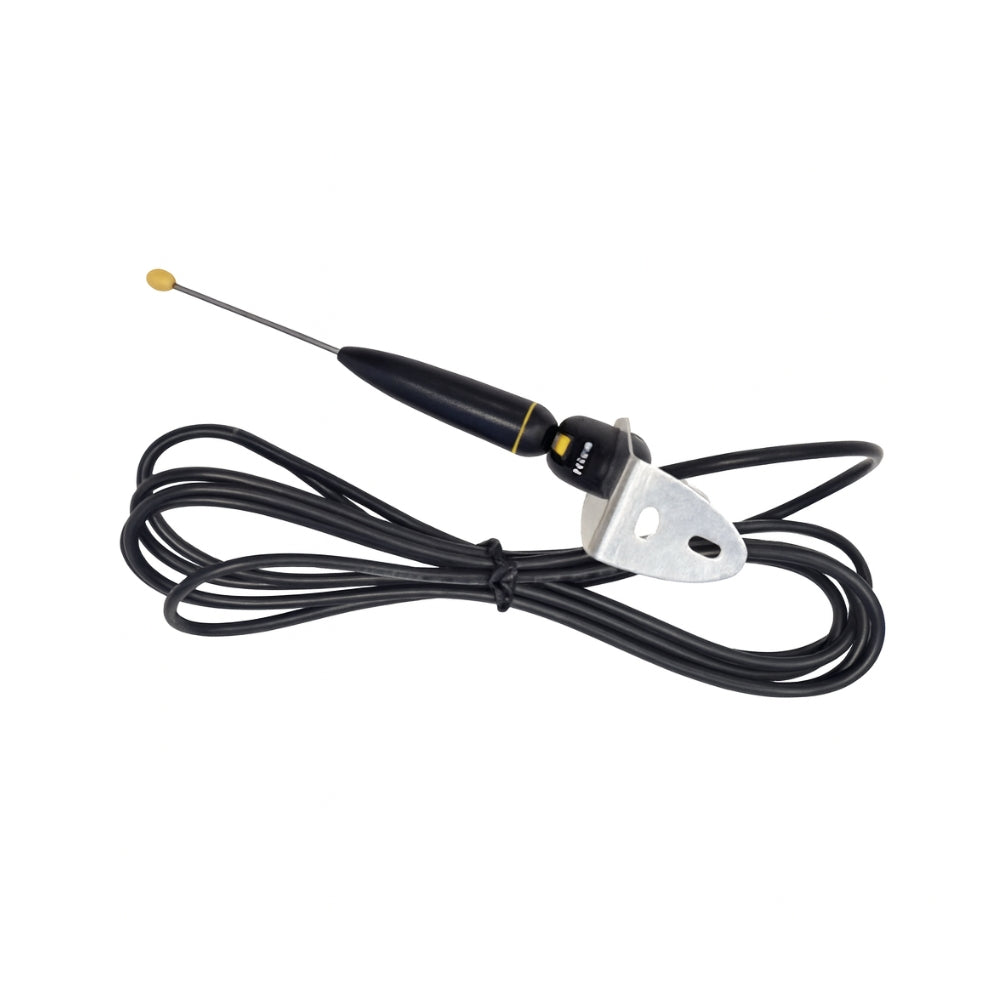

• ABF antenna

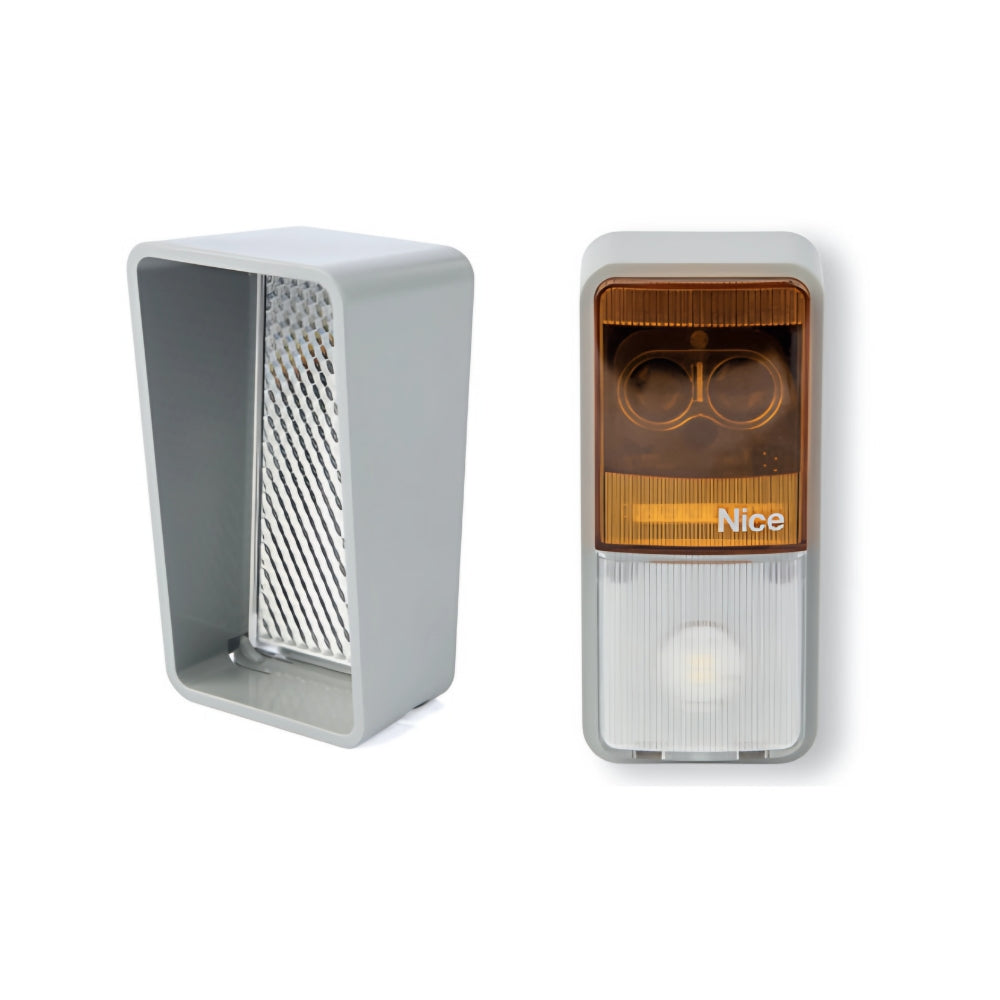

• EPMORB/A BlueBUS reflective photo eye

Features

• Simple: UL 325 compliance with no external safety devices required using 310 bundle models*.
• Powerful: Move gate leaf up to 1,000 lbs and 20 ft. Easy maintenance: Modular, field-replaceable components for easy maintenance.
• Convenience: Easy access to limit switch adjustment.
• Gate types: Single or dual gate applications.
• Technology: Nice BlueBUS 2-wire system self-identifies monitored photo eyes.
• Design: Superior arm design keeps out dust and snow.
• Noise reduction: Soft-start and soft-stop for smooth gate operation.
• Protected: Locking manual release prevents unauthorized access and allows operation during a power outage.
• Easy Maintenance. Modular, field-replaceable components for easy maintenance

Technical Specifications

• Model: Nice TITANKIT 12L1 Solar
• Operator Kit: Single: CBOX1050 and 912L-1
• Duty Cycle: Continuous for AC; Varies based on solar charging capacity
• Drive Type: Electromechanical
• Open/Close Time (to 90°): 14 - 16 seconds, Open/Close speed independently adjustable
• Gate Length Max.: Up to 20 ft leaf (6 m)
• Gate Weight Max.: up to 600 lb for a 20 ft leaf or up to 1000 lb for an 8 ft leaf (272 kg for 6 m or 453 kg for 2.4 m)
• Temperature Rating: -4º to 122º F (-20º to 50º C)
• Operating Voltage: 12VDC
• Input Voltage: 12VDC or 24VDC
• Idle Current: 17 mA
• Accessory Power: 12VDC and 24VDC 0.3A each location
• Included Accessories: OXIBD bi-directional receiver, one set of EMX reflective photo eyes, Era One 2 Channel Mono Transmitter, Pivot Bolt
• Communication: BlueBUS, BUST4, OXI
• User Controls: 1050US board
• Relays: 3 programmable
• Actuator Dimensions: Total Length: 42.5 retracted - 69.3 extended inches (108 - 176 cm) Pin-to-Pin: 40.5 retracted - 67.3 extended inches (103 - 171 cm)
• Enclosure: CBOX: 18w x 18h x 8d inch (46w x 46h x 20.3d cm)
• Finish: CBOX: Black powder-coat steel
• Listed to UL 325: Usage Class I, II
• Warranty: 3-year w/ product registration

Note: The Nice O-T12L1-SLR-KIT Swing Gate Operator Kit was originally offered under the Apollo brand, known for its dependable gate automation components. Following Apollo’s acquisition by Nice, this part is now officially part of the Nice product line. It maintains the same compatibility and performance, now supported by the global resources and innovation of Nice Group.
